Hello Engineers! In this video, I explain the pinout of the 7447 BCD Decoder Chip Resources Datasheet + Schematic - https://drive.google.com/drive/folders/... 13+ 7447 Pin Diagram. 7447 is a bcd (binary coded decimal) display driver and it is usually used to drive a 7 segment led display. The other led pins are connected together and wired to form a common pin. Nsc, alldatasheet, datasheet, datasheet search site for electronic components and semiconductors. Tutorial | using the 7447 74hc47 bcd to 7 ...

New software came handy to draw such complicated diagrams. 13+ Ic 7447 Pin Diagram. In this video we will look at this very common 7447 bcd to 7 segment display ic and go over every pin on the chip, and circuit diagram link : Looking at the figure we see that the device is a 16 pin dil ic, the basic ic 4017 pinout connection diagram.

7447 pin diagram

Using the 74xx47 BCD to Seven-segment display. The 74xx47 chip is used to drive 7 segment display. You must use the 74xx47 with a common anode 7-segment display (e.g. Kingbright part number SA03). The input to the 74xx47 is a binary number DCBA where D is 8s, C is 4s, B is 2s and A is 1s. The inputs DCBA often come from a binary counter. Answer (1 of 3): RBI ? It is supposed to be Ripple Blanking Input. As the name suggests, and as you must have guessed, in the case of Multi Digit display, it receives a ripple from its previous IC's RBO pulse. RBO = Ripple Blanking Output. It is used to Blank out the leading zeros and supposed to... Step 1: The Logic of the Digital Clock Circuit Diagram. Digital Clock Circuit Diagram. As said earlier, our clock is a 12 hour clock. So, the clock we want is something like this HH : MM : SS A/P. Now, SS may also be referred as S1 S0 & the same goes for MM. So counts from 0 to 9 & then S1 becomes 1 & S0 counts again.

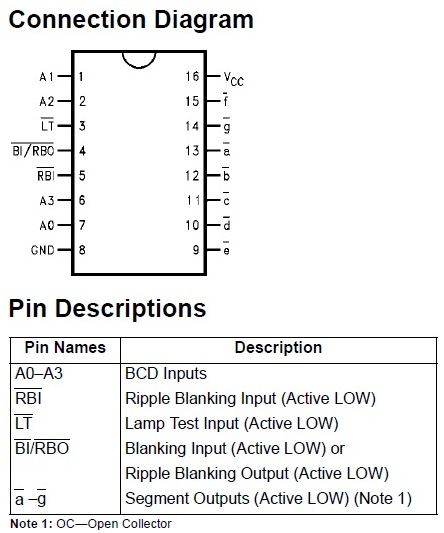

7447 pin diagram. Digital Electronics Dr. McLean A GND BI/ RBO c d e B C LT Vcc f g a b 1 2 3 4 5 6 7 8 28 Ic 7447 Pin Diagram 7447 Ic Pinout Diagram. Project Scoreboard An Experiment In Tech Ed. Digital Electronics Practical Electronics For Inventors. Integrated Circuits Original New Ic Chip 7447 Buy 7447 Sn74ls47n Sn74ls47 Product On Alibaba Com. Electronics Club 74 Series Logic Ics Families 74hc. Pin 2: Pin 2 represents the second bit of 4-bit input data of the IC. LT' Pin 3: Pin 3 is known as the lamp test pin. It is used to make all the output pins HIGH to test all the 7-segment led. It's an active low pin. BI'/BRO' Pin 4: Pin 4 will act as a reset pin. In case of LOW state on pin 4, there won't be any output. BCD to 7-Segment Decoder IC & Pin outs. 7447 BCD to 7-Segment Decoder. The commonly used IC for BCD to 7-segment decoding is 7447. The pin configuration of 7447 is given in the figure below. Also read: ... The diagram for the 7-Segment Display Decoder Circuit is incorrect. The 2 input Or gate that is being fed into segment e is incorrectly ...

7447, 7447 Datasheet, 7447 BCD to 7-Segment Decoder/Driver, buy 7447, ic 7447 BCD to 7-Segment Decoders/Drivers, 7447 datasheet, 7447 circuit, 7447 data sheet : NSC, alldatasheet, datasheet, Datasheet search site for Electronic Components and Semiconductors, integrated circuits, diodes, triacs, and other semiconductors. 74LS192 SYNCHRONOUS 4-BIT BCD UP/DOWN COUNTER Timing Diagram . Source: Texas Instruments TTL Data Book . Title: 74LS00 Author: Taek Kwon Created Date: 3/31/2005 11:23:34 PM According to the 7447 datasheet the 7446A and 7447A ICs feature active-low outputs designed for driving common-anode LEDs or incandescent indicators directly. All of the circuits have full ripple-blanking input/output controls and a lamp test input. Segment identification and resultant displays are shown on a following page. 7447 pin configuration

5-3 FAST AND LS TTL DATA SN54/74LS47 GUARANTEED OPERATING RANGES Symbol Parameter Min Typ Max Unit VCC Supply Voltage 54 74 4.5 4.75 5.0 5.0 5.5 5.25 V TA Operating Ambient Temperature Range 54 Now let's take a look at the pin diagram of a 7447: As you can see, pins 1, 2, 6, and 7 (respectively, B, C, D, & A) are the input pins which receive binary numbers from the output of the 160A counter chip. Then, as mentioned before, a lot of transistor logic. The inside of a 7447 looks something like this: If it looks complicated, never fear. IC 7490 Decade Counter Circuit Pin Diagram: IC 7490 is a 14 pin DIP(dual inline package) ic. The pin description of 7490 is as follows, Working of 7490 Decade Counter Circuit: It's a BCD counter it can count from 0 to 9 (10 states), hence it is called a mod-10 counter. It has two separate counters, a mod 2 counter, and another mod 5 counter. datasheet ic 7490 pin diagram. 7447 ic internal structure getreport in. internal structure of ic 9400 v to f converter ee301. r 2 wordpress com. synchronous counters final report. 7476 ic pinout diagram integrated circuits elektropage com. digital clock project report touhid electronic

BCD to 7 Segment Decoder using IC 7447 | Anode Type | Cathode ...

Sep 12, 2020 · 7447 Datasheet - BCD to 7-Segment Decoder/Driver - Fairchild, DM7447A datasheet, 7447 pdf, 7447 pinout, 7447 manual, 7447 schematic, 7447 equivalent.

IC 7432 Pin diagram, circuit design, Datasheet, Application ...

74LS93 or SN74LS93 is a 4-bit binary counter. Counters have a major role in every electronics device. The output of the counters can be used in multiple devices as pulse counting or for generating interrupts, etc. Counters come up in two form Asynchronous and Synchronous counters.

Using the 7447 BCD to Seven-segment display

TUBE *All dimensions are nominal Device Package Name Package Type Pins SPQ L (mm) W (mm) T (µm) B (mm) SN7447AN N PDIP 16 25 506 13.97 11230 4.32

How to connect 7447 decoder to 7-segment display ...

Sep 9, 2021 - In this article, we are going to know BCD to Seven Segment Display Decoder(using a single IC) with examples and circuit diagrams. See the Pin Diagram of IC 74LS47 here. BCD to Seven Segment Display Decoder Circuit using IC 7447 are given below. truth Table of BCD to Seven Segment Display Decoder Circuit.

Driving four 7-segment arrays by multiplexing

A functional diagram of a 74LS47 driver ICs or BCD-to-seven-segment decoder. In addition, the AC circuit of 74LS47 has a source of low output, and the co-anode LED has an external current limiting resistance drives display. Figure 2 below is a functional diagram giving a clear illustration of a circuit pattern.

ELECTRIC PROJECT CIRCUIT

IC 74147 Pin Diagram, Internal Circuit, Truth Table. IC 74147 is a digital encoder IC that encodes 9 inputs lines into 4 output lines. It is also known as the Decimal to BCD priority encoder. The priority encoder term is used because it provides encoding for highest order data lines as a first priority. It is made up using Transistor-Transistor ...

How to connect 7447 decoder to 7-segment display ...

IC 7432 Pin diagram, circuit design, Datasheet, Application; IC 7408 Pin Diagram, Circuit Design, Data Sheet, Application; Pin diagram and Internal circuit diagram of Timer IC 555 ; Pin diagram and circuit design of BCD to Display decoder IC 7447; Pin diagram and Circuit of Op-Amp IC 741; Easy way to understand what is logic gate?

BCD to Seven Segment Display Decoder Circuit using IC 7447 ...

Pin Diagram This pin diagram of 7447 IC where Pin 7 - A Pin 1 - B Pin 2 - C Pin 6 - D In Seven Segment Display (Common Cathode) Pins are represented by alphabets on display as well as on 7447 ic For more details have look at circuit diagram below Circuit Diagram This is whole working circuit for seven segment display

Bcd to 7 segment display

Pin Configuration of IC 7447 - Free download as Word Doc (.doc), PDF File (.pdf), Text File (.txt) or read online for free. Pin configuration of IC 7447 used for 7 segment display

Connecting 3 digits 7 segments 28 pins to IC 7447 to Arduino ...

Step 1: The Logic of the Digital Clock Circuit Diagram. Digital Clock Circuit Diagram. As said earlier, our clock is a 12 hour clock. So, the clock we want is something like this HH : MM : SS A/P. Now, SS may also be referred as S1 S0 & the same goes for MM. So counts from 0 to 9 & then S1 becomes 1 & S0 counts again.

How can we connect 7 segment display with IC 7447? - Quora

Answer (1 of 3): RBI ? It is supposed to be Ripple Blanking Input. As the name suggests, and as you must have guessed, in the case of Multi Digit display, it receives a ripple from its previous IC's RBO pulse. RBO = Ripple Blanking Output. It is used to Blank out the leading zeros and supposed to...
